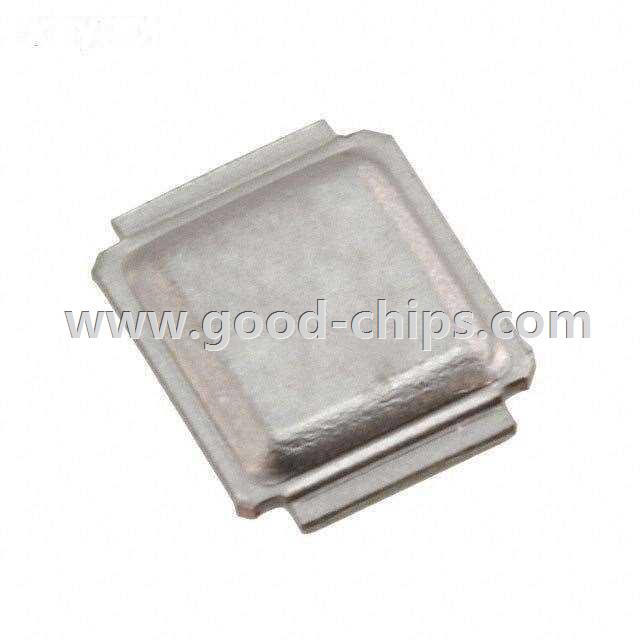

| Manufacturer Part Number: | IRL6297SDTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 20V 15A DIRECTFET |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRL6297SDTRPBF Datasheet |
| Internal Part Number | 898-IRL6297SDTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 15A | |
| Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 15A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.1V @ 35µA | |
| Gate Charge (Qg) @ Vgs | 54nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2245pF @ 10V | |
| Power - Max | 1.7W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | DirectFET™ Isometric SA | |
| Supplier Device Package | DIRECTFET™ SA | |
| Standard Package | 4,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRL6297SDTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRL6297SDTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRL6297SDTRPBF is new and unused, you can buy IRL6297SDTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRL6297SDTRPBF.
