| Manufacturer Part Number: | IRGPS66160DPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 10073 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 600V 240A 750W Through Hole SUPER-247 (TO-274AA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRGPS66160DPBF Datasheet |
| Internal Part Number | 898-IRGPS66160DPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 600V Trench Ultrafast 66xx Series IGBTs | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 240A | |
| Current - Collector Pulsed (Icm) | 360A | |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 120A | |
| Power - Max | 750W | |
| Switching Energy | 4.47mJ (on), 3.43mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 220nC | |
| Td (on/off) @ 25°C | 80ns/190ns | |
| Test Condition | 400V, 120A, 4.7 Ohm, 15V | |
| Reverse Recovery Time (trr) | 95ns | |
| Package / Case | TO-274AA | |
| Mounting Type | Through Hole | |

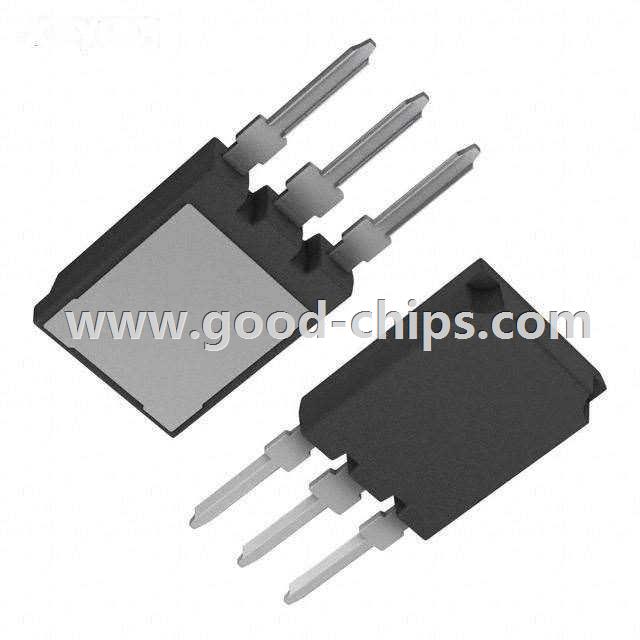

| Supplier Device Package | SUPER-247 (TO-274AA) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRGPS66160DPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRGPS66160DPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRGPS66160DPBF is new and unused, you can buy IRGPS66160DPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRGPS66160DPBF.
