| Manufacturer Part Number: | IRG4PSH71U |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 1200V 99A 350W Through Hole SUPER-247 (TO-274AA) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRG4PSH71U Datasheet |
| Internal Part Number | 898-IRG4PSH71U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 99A | |
| Current - Collector Pulsed (Icm) | 200A | |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 70A | |
| Power - Max | 350W | |
| Switching Energy | 4.77mJ (on), 9.54mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 370nC | |
| Td (on/off) @ 25°C | 51ns/280ns | |
| Test Condition | 960V, 70A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-274AA | |
| Mounting Type | Through Hole | |

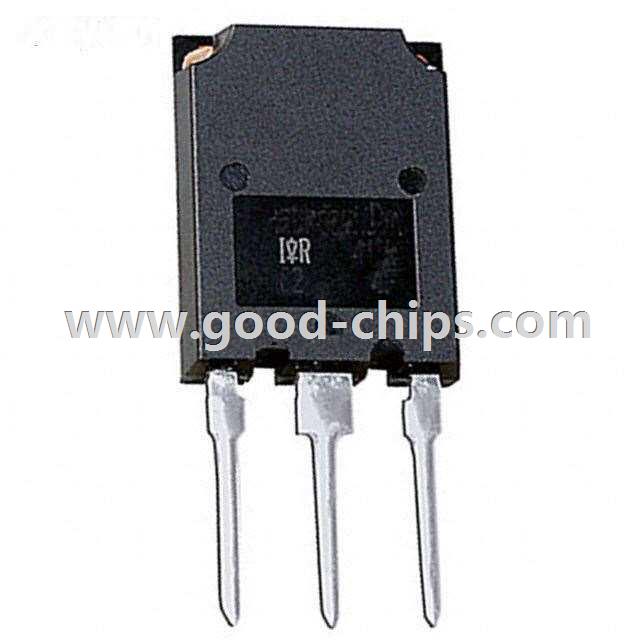

| Supplier Device Package | SUPER-247 (TO-274AA) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRG4PSH71U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRG4PSH71U is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRG4PSH71U is new and unused, you can buy IRG4PSH71U Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRG4PSH71U.
