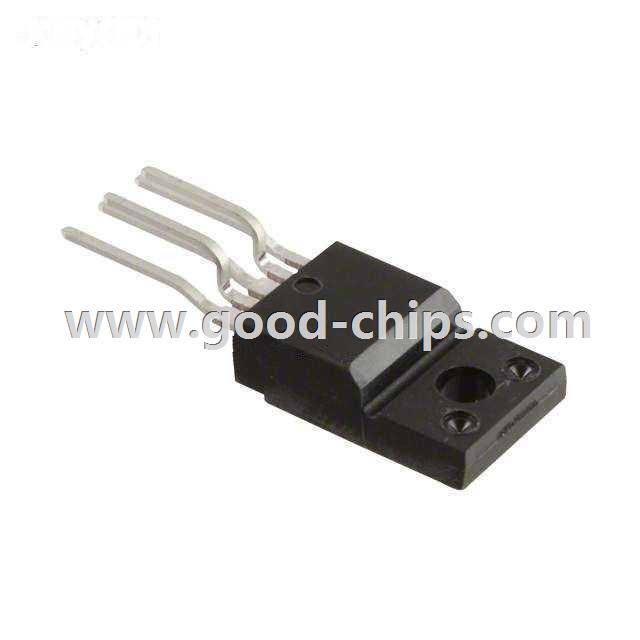

| Manufacturer Part Number: | IRFI4024H-117P |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 55V 11A TO-220FP-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFI4024H-117P Datasheet |
| Internal Part Number | 898-IRFI4024H-117P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| PCN Obsolescence/ EOL | Multiple Devices 25/Apr/2014 | |
| PCN Design/Specification | Alternate Mold Compound 02/Jul/2014 | |
| PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 55V | |
| Current - Continuous Drain (Id) @ 25°C | 11A | |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 7.7A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 25µA | |
| Gate Charge (Qg) @ Vgs | 13nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 320pF @ 50V | |
| Power - Max | 14W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-5 Full Pack | |
| Supplier Device Package | TO-220-5 Full-Pak | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFI4024H-117P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFI4024H-117P is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFI4024H-117P is new and unused, you can buy IRFI4024H-117P Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFI4024H-117P.
