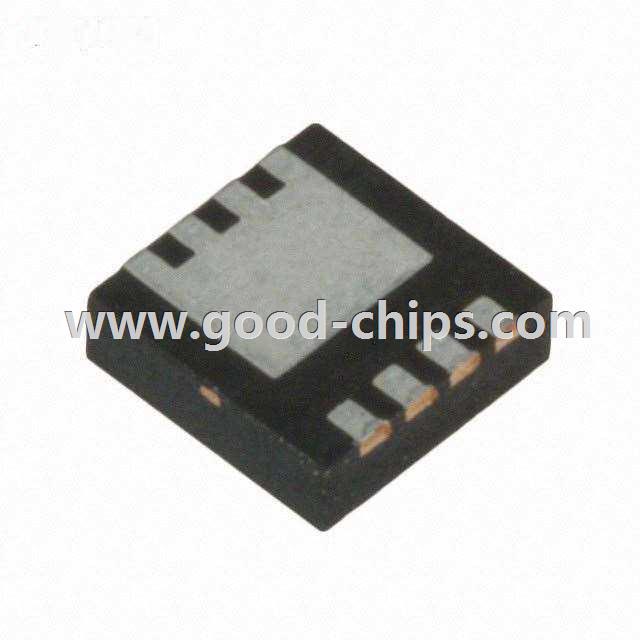

| Manufacturer Part Number: | IRFHM830TRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 21A PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFHM830TRPBF Datasheet |
| Internal Part Number | 898-IRFHM830TRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below | |
| Design Resources | IRFHM830TR2PBF Saber Model IRFHM830TR2PBF Spice Model | |
| PCN Design/Specification | Gate Wire Size Update 16/Dec/2014 | |
| PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 Additional Assembly Site 10/Jul/2014 Assembly Site Retraction 01/Jul/2015 Assembly Site Revision 2 01/Jul/2015 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 40A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.8 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.35V @ 50µA | |
| Gate Charge (Qg) @ Vgs | 31nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2155pF @ 25V | |
| Power - Max | 2.7W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-VQFN Exposed Pad | |
| Supplier Device Package | PQFN (3x3) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFHM830TRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFHM830TRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFHM830TRPBF is new and unused, you can buy IRFHM830TRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFHM830TRPBF.
