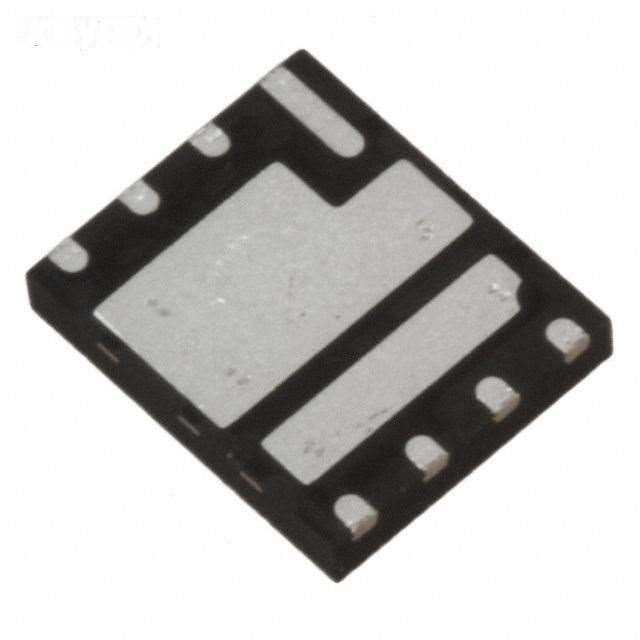

| Manufacturer Part Number: | IRFH4253DTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 25V 64A/145A PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFH4253DTRPBF Datasheet |
| Internal Part Number | 898-IRFH4253DTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PQFN 5x6 RoHS Compliance | |
| Featured Product | 25 V FastIRFET™ Family of Dual Power MOSFETs in Power Block PQFN Package | |
| PCN Assembly/Origin | Assembly Site Addition 13/Mar/2015 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 64A, 145A | |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 30A, 10V | |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA | |
| Gate Charge (Qg) @ Vgs | 15nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1314pF @ 13V | |
| Power - Max | 31W, 50W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | PQFN (5x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFH4253DTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFH4253DTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFH4253DTRPBF is new and unused, you can buy IRFH4253DTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFH4253DTRPBF.
