| Manufacturer Part Number: | IRFBL3703 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 260A SUPER D2PAK |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFBL3703 Datasheet |
| Internal Part Number | 898-IRFBL3703 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 260A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.5 mOhm @ 76A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 209nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 8250pF @ 25V | |
| Power - Max | 3.8W | |
| Operating Temperature | * | |
| Mounting Type | Surface Mount | |

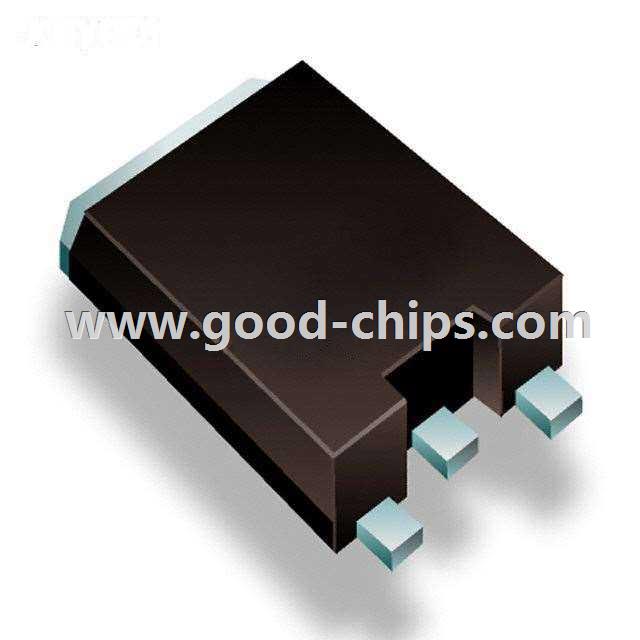

| Package / Case | Super D2-Pak | |
| Supplier Device Package | SUPER D2-PAK | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFBL3703 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFBL3703 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFBL3703 is new and unused, you can buy IRFBL3703 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFBL3703.
