| Manufacturer Part Number: | IRFBA1404PPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 40V 206A SUPER-220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFBA1404PPBF Datasheet |
| Internal Part Number | 898-IRFBA1404PPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 206A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.7 mOhm @ 95A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 200nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7360pF @ 25V | |
| Power - Max | 300W | |
| Operating Temperature | -40°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

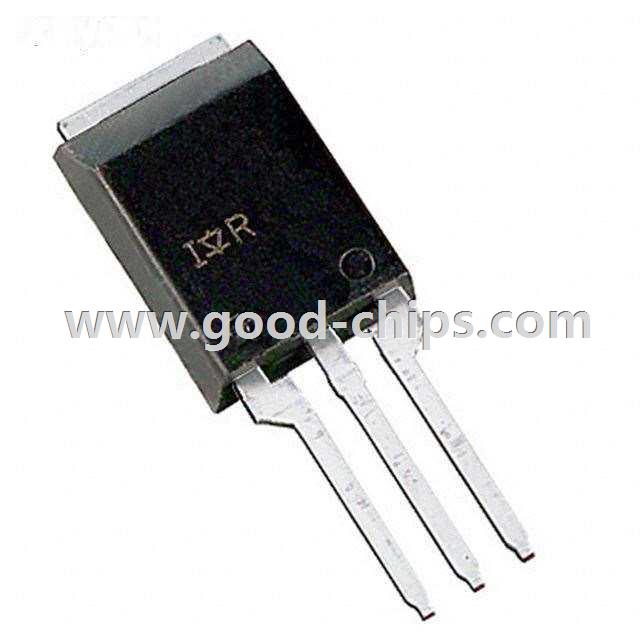

| Package / Case | Super-220™-3 (Straight Leads) | |
| Supplier Device Package | SUPER-220™ (TO-273AA) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFBA1404PPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFBA1404PPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFBA1404PPBF is new and unused, you can buy IRFBA1404PPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFBA1404PPBF.
