| Manufacturer Part Number: | IRFB3207ZPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9508 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 75V 120A TO-220AB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFB3207ZPBF Datasheet |
| Internal Part Number | 898-IRFB3207ZPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRFB3207ZPBF Saber Model IRFB3207ZPBF Spice Model | |
| PCN Assembly/Origin | Mosfet Backend Wafer Processing 23/Oct/2013 Qualification Wafer Source 01/Apr/2014 Warehouse Transfer 29/Jul/2015 TO220/247 Fab Site Transfer 19/May/2016 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 75V | |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | |
| Rds On (Max) @ Id, Vgs | 4.1 mOhm @ 75A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 150µA | |
| Gate Charge (Qg) @ Vgs | 170nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 6920pF @ 50V | |
| Power - Max | 300W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

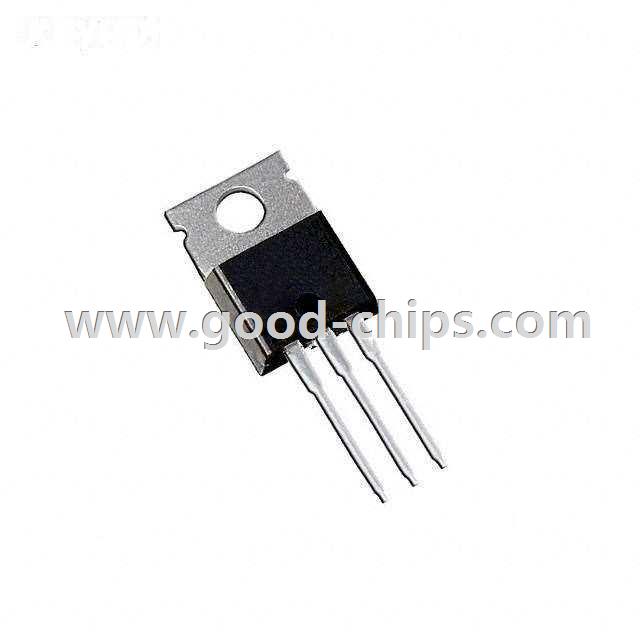

| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFB3207ZPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFB3207ZPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFB3207ZPBF is new and unused, you can buy IRFB3207ZPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFB3207ZPBF.
