| Manufacturer Part Number: | IRF7580MTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 60V 114A DIRECTFET |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF7580MTRPBF Datasheet |
| Internal Part Number | 898-IRF7580MTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | StrongIRFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 114A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.6 mOhm @ 70A, 10V | |
| Vgs(th) (Max) @ Id | 3.7V @ 150µA | |
| Gate Charge (Qg) @ Vgs | 180nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 6510pF @ 25V | |
| Power - Max | 96W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |

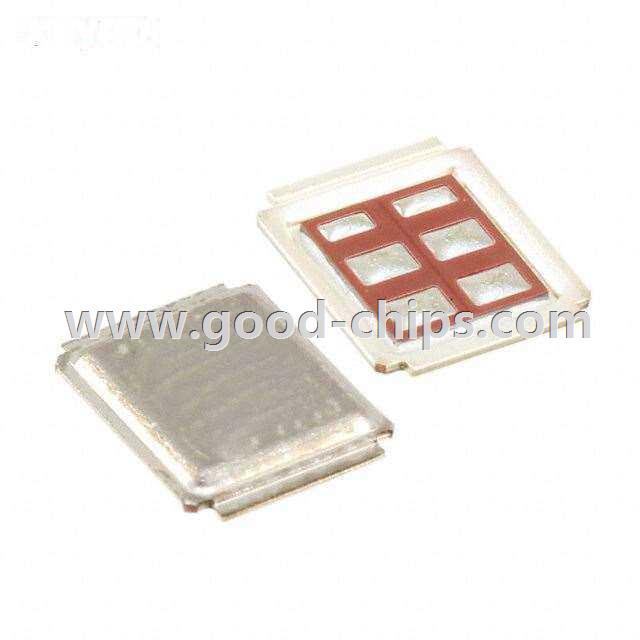

| Package / Case | DirectFET™ Isometric ME | |
| Supplier Device Package | DirectFET™ Isometric ME | |
| Standard Package | 4,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF7580MTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF7580MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF7580MTRPBF is new and unused, you can buy IRF7580MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF7580MTRPBF.
