| Manufacturer Part Number: | IRF6720S2TRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 11A DIRECTFET-S1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF6720S2TRPBF Datasheet |
| Internal Part Number | 898-IRF6720S2TRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power MOSFETs 40V and Below | |
| PCN Obsolescence/ EOL | Gen 10.x Products 12/Dec/2012 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 35A (Tc) | |
| Rds On (Max) @ Id, Vgs | 8 mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | |
| Gate Charge (Qg) @ Vgs | 12nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1140pF @ 15V | |
| Power - Max | 1.7W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |

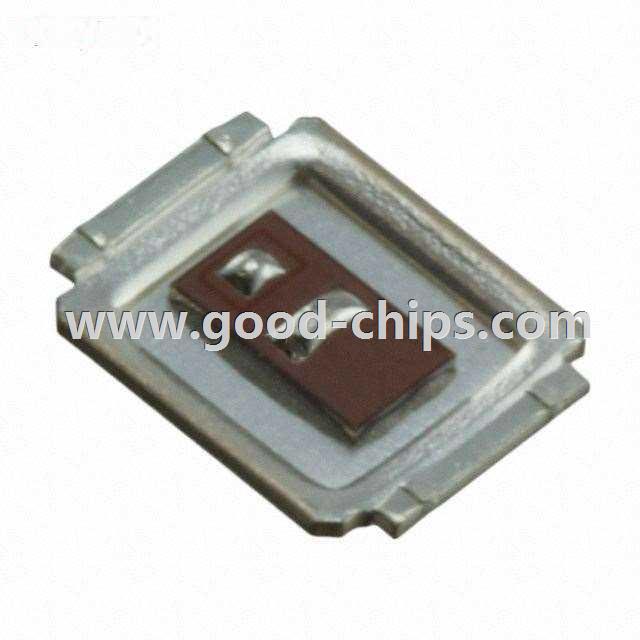

| Package / Case | DirectFET™ Isometric S1 | |
| Supplier Device Package | DIRECTFET S1 | |
| Standard Package | 4,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF6720S2TRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF6720S2TRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF6720S2TRPBF is new and unused, you can buy IRF6720S2TRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF6720S2TRPBF.
