| Manufacturer Part Number: | IRF3706L |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 20V 77A TO-262 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF3706L Datasheet |
| Internal Part Number | 898-IRF3706L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power MOSFETs 40V and Below | |
| Design Resources | IRF3706L Saber Model IRF3706L Spice Model | |
| PCN Obsolescence/ EOL | EOL122B 02/Oct/2007 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 77A (Tc) | |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 35nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 2410pF @ 10V | |
| Power - Max | 88W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

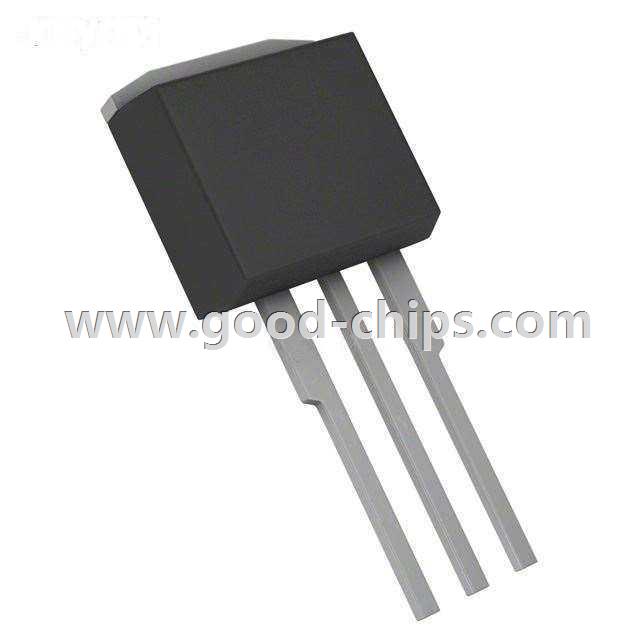

| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
| Supplier Device Package | TO-262 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF3706L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF3706L is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF3706L is new and unused, you can buy IRF3706L Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF3706L.
