| Manufacturer Part Number: | IRDC5001-LS48V |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

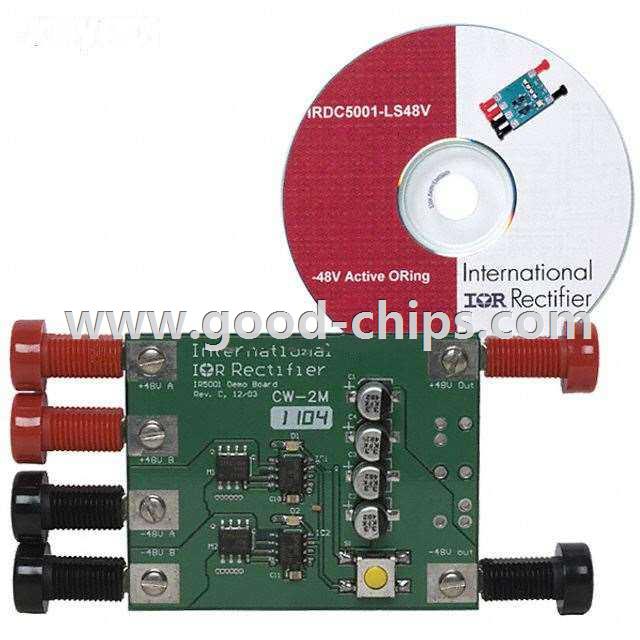

| Description: | IR5001 - Power Management, ORing Controller / Load Share Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRDC5001-LS48V Datasheet |
| Internal Part Number | 898-IRDC5001-LS48V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, ORing Controller / Load Share | |
| Embedded | No | |
| Utilized IC / Part | IR5001 | |
| Primary Attributes | Dual -48V Inputs (-36 ~ -75V) are OR-ed, Up to 200W Loads | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRDC5001-LS48V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRDC5001-LS48V is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRDC5001-LS48V is new and unused, you can buy IRDC5001-LS48V Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRDC5001-LS48V.
