Manufacturer Part Number: | IRDC3899 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

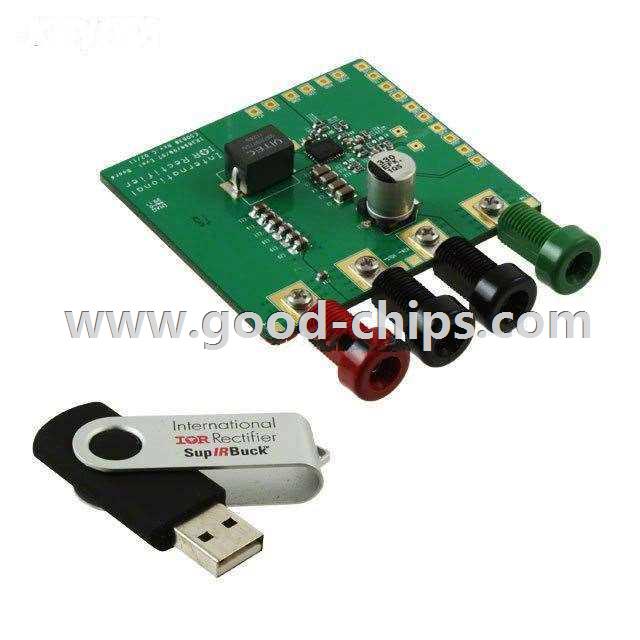

Description: | IR3899 SupIRBuck® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRDC3899 Datasheet |
Internal Part Number | 898-IRDC3899 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SupIRBuck™ Overview High Voltage Integrated Circuits (HVIC Gate Drivers) | |
Design Resources | Development Tool Selector | |
Featured Product | SupIRBuck® - Gen3 Integrated Voltage Regulators | |
Online Catalog | IR389 Series Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Infineon Technologies | |
Series | SupIRBuck® | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1.2V | |
Current - Output | 9A | |
Voltage - Input | 12V | |
Regulator Topology | Buck | |
Frequency - Switching | 600kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | IR3899 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRDC3899 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRDC3899 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRDC3899 is new and unused, you can buy IRDC3899 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRDC3899.
