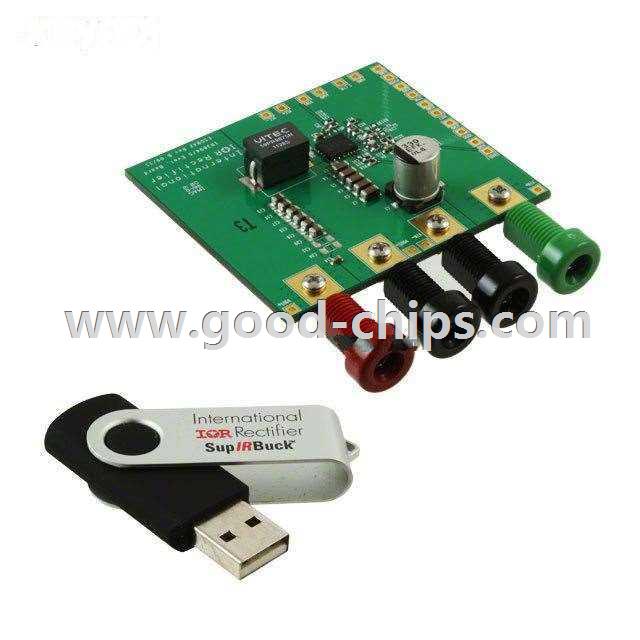

| Manufacturer Part Number: | IRDC3895 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | IR3895 SupIRBuck® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRDC3895 Datasheet |
| Internal Part Number | 898-IRDC3895 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | Development Tool Selector | |
| Featured Product | SupIRBuck® - Gen3 Integrated Voltage Regulators | |
| Reference Design Library | IRDC3895: 1.2V @ 16A, 12Vin, Buck IRDC3895-P1V2: 1.2V @ 16A, 12V in | |
| Online Catalog | IR389 Series Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Infineon Technologies | |
| Series | SupIRBuck® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 1.2V | |
| Current - Output | 16A | |
| Voltage - Input | 12V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 600kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | IR3895 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRDC3895 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRDC3895 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRDC3895 is new and unused, you can buy IRDC3895 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRDC3895.
