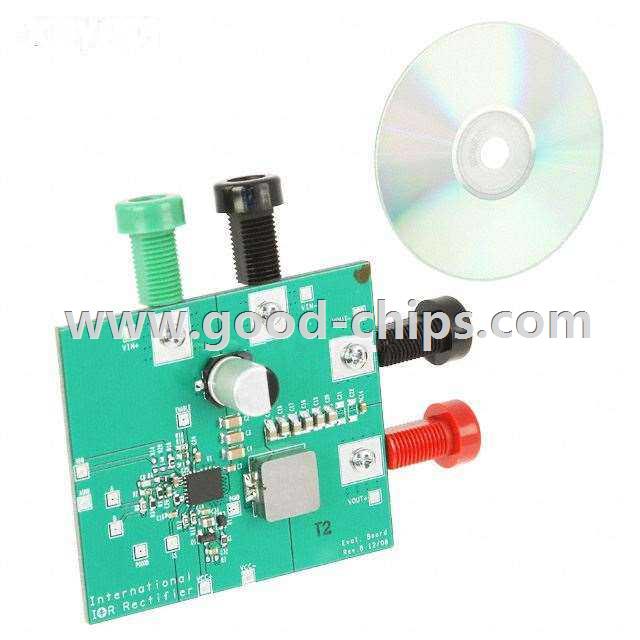

Manufacturer Part Number: | IRDC3841W |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IR3841W SupIRBuck® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRDC3841W Datasheet |
Internal Part Number | 898-IRDC3841W | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Infineon Technologies | |
Series | SupIRBuck® | |
Part Status | Obsolete | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1.8V | |
Current - Output | 8A | |
Voltage - Input | 12V | |
Regulator Topology | Buck | |
Frequency - Switching | 600kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | IR3841W | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRDC3841W | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRDC3841W is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRDC3841W is new and unused, you can buy IRDC3841W Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRDC3841W.
