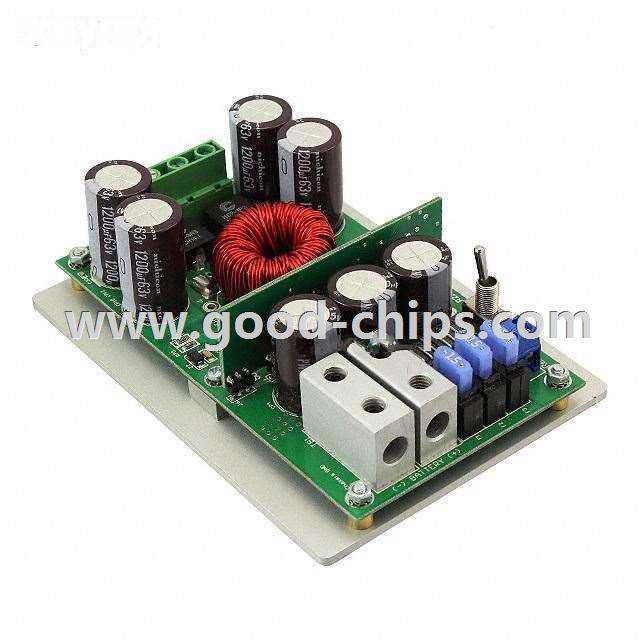

| Manufacturer Part Number: | IRAUDPS1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | IR2085, IRF6648 - DC/DC, Positive and Negative 1, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRAUDPS1 Datasheet |
| Internal Part Number | 898-IRAUDPS1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | Development Tool Selector | |
| Online Catalog | IR2085 and IRF6648 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Positive and Negative | |
| Outputs and Type | 1, Isolated | |
| Power - Output | 500W | |
| Voltage - Output | ±35V | |
| Current - Output | 7A | |
| Voltage - Input | 10 V ~ 18 V | |
| Regulator Topology | Boost | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | 2 Boards | |
| Utilized IC / Part | IR2085, IRF6648 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRAUDPS1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRAUDPS1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAUDPS1 is new and unused, you can buy IRAUDPS1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAUDPS1.
