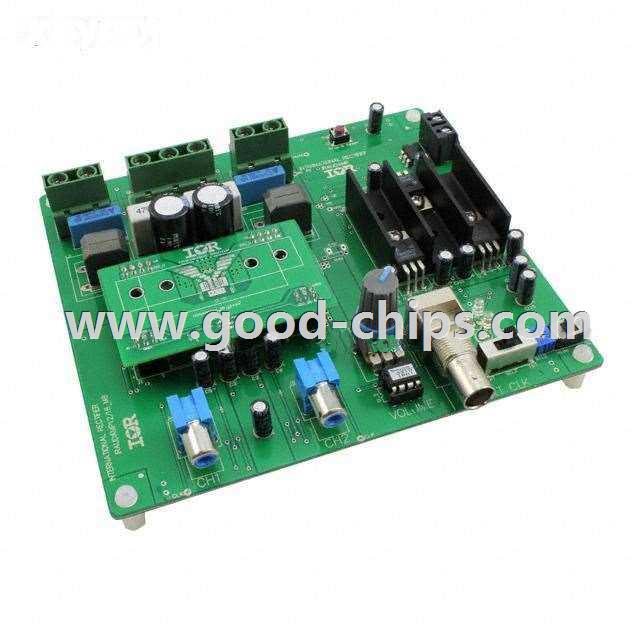

Manufacturer Part Number: | IRAUDAMP16 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - Audio Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IR4302 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRAUDAMP16 Datasheet |
Internal Part Number | 898-IRAUDAMP16 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Reference Design Library | IRAUDAMP16: 70W or 130W x 2 @ 4O, ±13 ~ ±23V in | |
Online Catalog | IR4302 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Audio Amplifiers | |
Manufacturer | Infineon Technologies | |
Series | - | |
Part Status | Active | |
Amplifier Type | Class D | |
Output Type | 2-Channel (Stereo) | |
Max Output Power x Channels @ Load | 70W x 2 @ 4 Ohm | |
Voltage - Supply | ±13 V ~ 23 V | |
Board Type | Fully Populated | |
Utilized IC / Part | IR4302 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRAUDAMP16 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRAUDAMP16 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAUDAMP16 is new and unused, you can buy IRAUDAMP16 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAUDAMP16.
