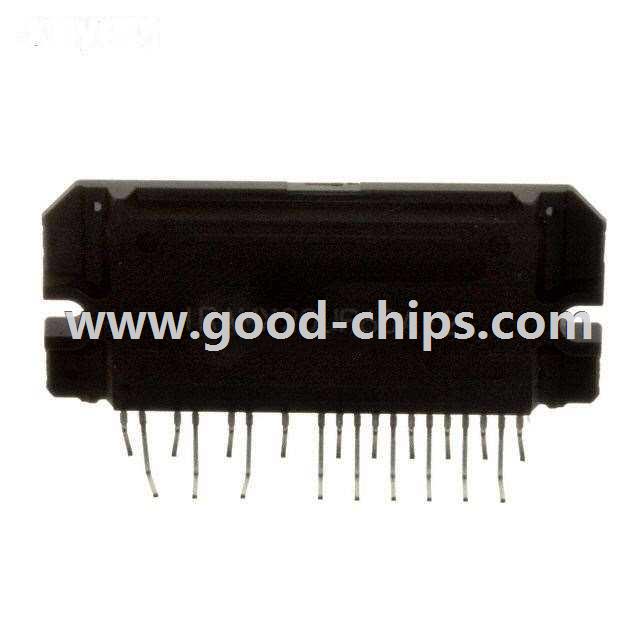

| Manufacturer Part Number: | IRAMX20UP60A-2 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9318 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 20A SIP2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRAMX20UP60A-2 Datasheet |
| Internal Part Number | 898-IRAMX20UP60A-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IRAM Product Line Overview High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Featured Product | Motor Power Stage Protected with Rugged 600 V ICs | |
| PCN Assembly/Origin | IRAM Product Factory Relocation 9/Aug/2013 | |
| Online Catalog | iMotion™ IRAMX Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Infineon Technologies | |
| Series | iMOTION™ | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 20A | |
| Voltage | 600V | |
| Voltage - Isolation | 2000Vrms | |
| Package / Case | SIP2 | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRAMX20UP60A-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRAMX20UP60A-2 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAMX20UP60A-2 is new and unused, you can buy IRAMX20UP60A-2 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAMX20UP60A-2.
