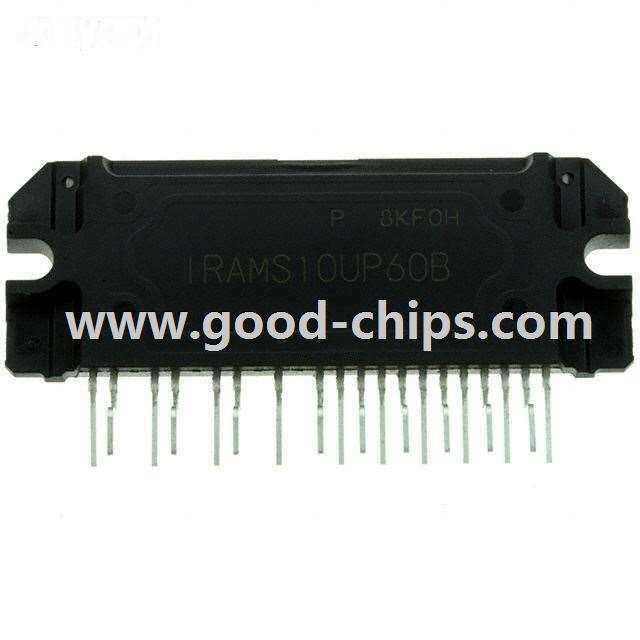

| Manufacturer Part Number: | IRAMS10UP60B |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 10A PCB Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRAMS10UP60B Datasheet |
| Internal Part Number | 898-IRAMS10UP60B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IRAM Product Line Overview High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Featured Product | Motor Power Stage Protected with Rugged 600 V ICs | |
| PCN Assembly/Origin | IRAM Product Factory Relocation 9/Aug/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Infineon Technologies | |
| Series | iMOTION™ | |
| Part Status | Not For New Designs | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 10A | |
| Voltage | 600V | |
| Voltage - Isolation | 2000Vrms | |
| Package / Case | PCB Module | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRAMS10UP60B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRAMS10UP60B is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAMS10UP60B is new and unused, you can buy IRAMS10UP60B Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAMS10UP60B.
