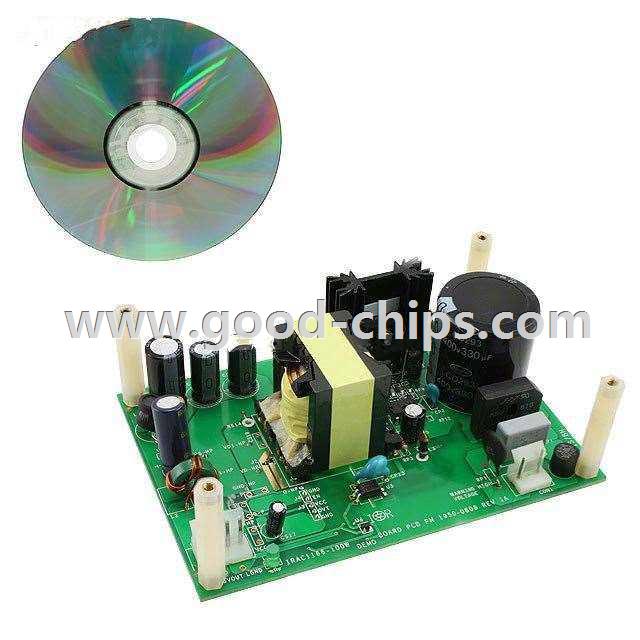

Manufacturer Part Number: | IRAC11662-100W |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IR11662 Advanced Smart Rectifier™ AC/DC, Secondary Side 1, Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRAC11662-100W Datasheet |
Internal Part Number | 898-IRAC11662-100W | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Infineon Technologies | |
Series | Advanced Smart Rectifier™ | |
Part Status | Not For New Designs | |
Main Purpose | AC/DC, Secondary Side | |
Outputs and Type | 1, Isolated | |
Power - Output | 100W | |
Voltage - Output | 16V | |
Current - Output | 6.25A | |
Voltage - Input | 90 ~ 265 VAC | |
Regulator Topology | Flyback | |
Frequency - Switching | - | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | IR11662 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRAC11662-100W | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRAC11662-100W is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAC11662-100W is new and unused, you can buy IRAC11662-100W Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAC11662-100W.
