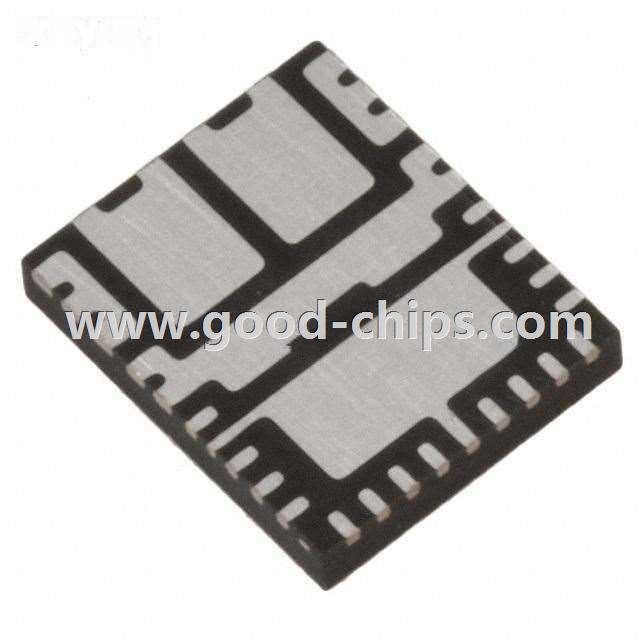

| Manufacturer Part Number: | IR3891MTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.5V 2 Output 4A 31-PowerVFQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR3891MTRPBF Datasheet |
| Internal Part Number | 898-IR3891MTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PQFN 5x6 RoHS Compliance | |
| Featured Product | IR3891 Dual-Output SupIRBuck Voltage Regulator | |
| Reference Design Library | IRDC3891: 1.8V @ 4A, 1.2V @ 4A, 12Vin, Dual buck | |
| PCN Assembly/Origin | SuplRbuck Backend Wafer Processing 23/Oct/2013 Additional Test Site 01/Aug/2014 | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Infineon Technologies | |
| Series | SupIRBuck® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 1V | |
| Voltage - Input (Max) | 21V | |
| Voltage - Output (Min/Fixed) | 0.5V | |
| Voltage - Output (Max) | 18.06V | |
| Current - Output | 4A | |
| Frequency - Switching | 300kHz ~ 1.5MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 31-PowerVFQFN | |
| Supplier Device Package | PQFN (5x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR3891MTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR3891MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR3891MTRPBF is new and unused, you can buy IR3891MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR3891MTRPBF.
