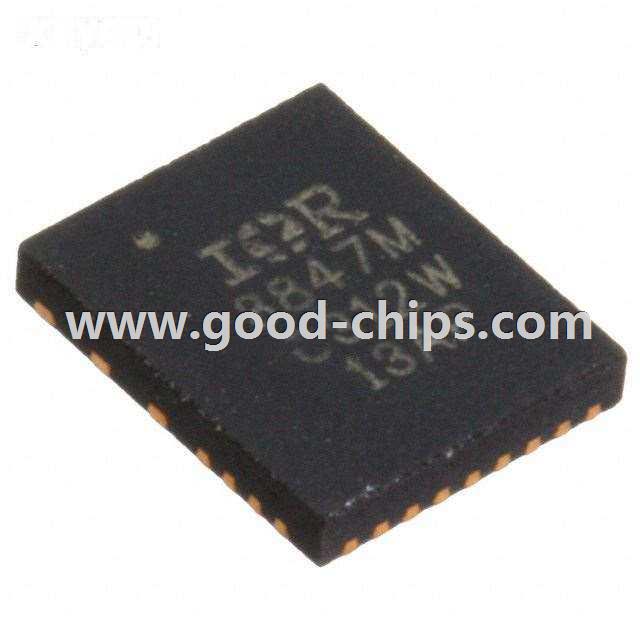

| Manufacturer Part Number: | IR3847MTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 25A 33-PowerVFQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR3847MTRPBF Datasheet |
| Internal Part Number | 898-IR3847MTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PQFN 5x6 RoHS Compliance | |
| Featured Product | High Current IR3847 Gen3 SupIRBuck® | |
| Reference Design Library | IRDC3847: 1.2V @ 25A, 12Vin, Buck IRDC3847-P1V2: 1.2V @ 25A, 12V in | |
| PCN Assembly/Origin | SuplRbuck Backend Wafer Processing 23/Oct/2013 | |
| PCN Other | MSL Level 2 Update 21/Oct/2014 | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Infineon Technologies | |
| Series | SupIRBuck® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 1.5V | |
| Voltage - Input (Max) | 21V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 18.06V | |
| Current - Output | 25A | |
| Frequency - Switching | 300kHz ~ 1.5MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 33-PowerVFQFN | |
| Supplier Device Package | PQFN (5x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR3847MTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR3847MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR3847MTRPBF is new and unused, you can buy IR3847MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR3847MTRPBF.
