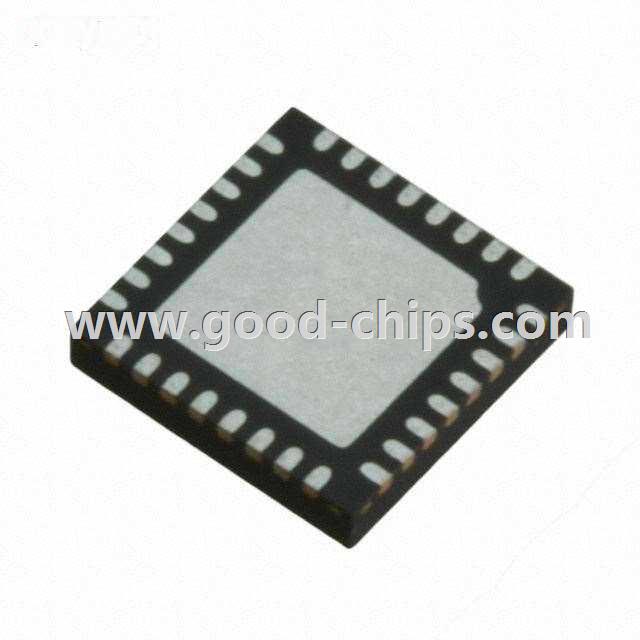

Manufacturer Part Number: | IR3622AMTRPBF |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-MLPQ (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IR3622AMTRPBF Datasheet |
Internal Part Number | 898-IR3622AMTRPBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | (EP) Parts 25/May/2012 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
Manufacturer | Infineon Technologies | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Output Type | Transistor Driver | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Number of Outputs | 2 | |
Output Phases | 2 | |
Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 14.5 V | |
Frequency - Switching | 200kHz ~ 600kHz | |
Duty Cycle (Max) | 84% | |
Synchronous Rectifier | Yes | |
Clock Sync | Yes | |
Serial Interfaces | - | |
Control Features | Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Package / Case | 32-VFQFN Exposed Pad | |
Supplier Device Package | 32-MLPQ (5x5) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IR3622AMTRPBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IR3622AMTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR3622AMTRPBF is new and unused, you can buy IR3622AMTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR3622AMTRPBF.
