Manufacturer Part Number: | IR36021MFS01TRP |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
Available Quantity: | 11189 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Regulator Positive Output Step-Down I²C, PMBus DC-DC Controller IC 32-MLPQ (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IR36021MFS01TRP Datasheet |
Internal Part Number | 898-IR36021MFS01TRP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Assembly Site Addition 16/Dec/2014 QFN-IC Assembly Site Addition 21/Apr/2015 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
Manufacturer | Infineon Technologies | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Discontinued | |
Output Type | PWM Signal | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Number of Outputs | 3 | |
Output Phases | 2 | |
Voltage - Supply (Vcc/Vdd) | 3.3V | |
Frequency - Switching | 200kHz ~ 2MHz | |
Duty Cycle (Max) | - | |
Synchronous Rectifier | - | |
Clock Sync | - | |
Serial Interfaces | I²C, PMBus | |
Control Features | Enable, Power Good | |
Operating Temperature | -40°C ~ 85°C (TA) | |

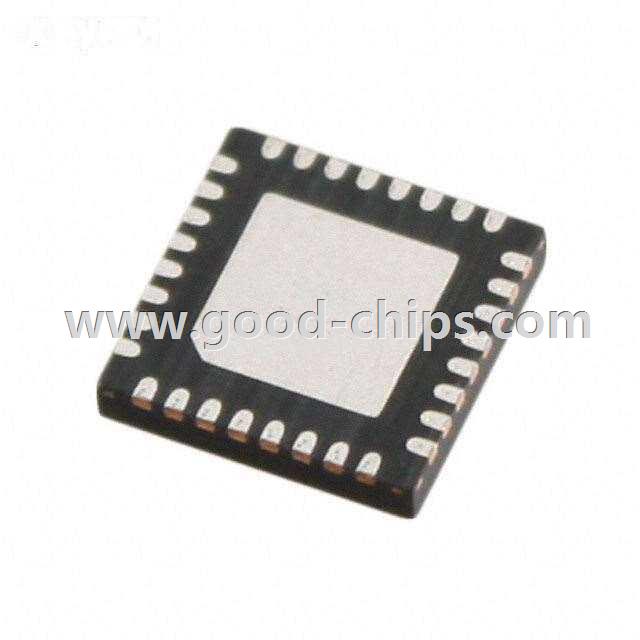

Package / Case | 32-VFQFN Exposed Pad | |
Supplier Device Package | 32-MLPQ (5x5) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IR36021MFS01TRP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IR36021MFS01TRP is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR36021MFS01TRP is new and unused, you can buy IR36021MFS01TRP Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR36021MFS01TRP.
