| Manufacturer Part Number: | IR2131JTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DRIVER BRIDGE 3-PHASE 44-PLCC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR2131JTRPBF Datasheet |
| Internal Part Number | 898-IR2131JTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 6 | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Voltage - Supply | 10 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | |
| Input Type | Inverting | |
| High Side Voltage - Max (Bootstrap) | 600V | |
| Rise / Fall Time (Typ) | 80ns, 40ns | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

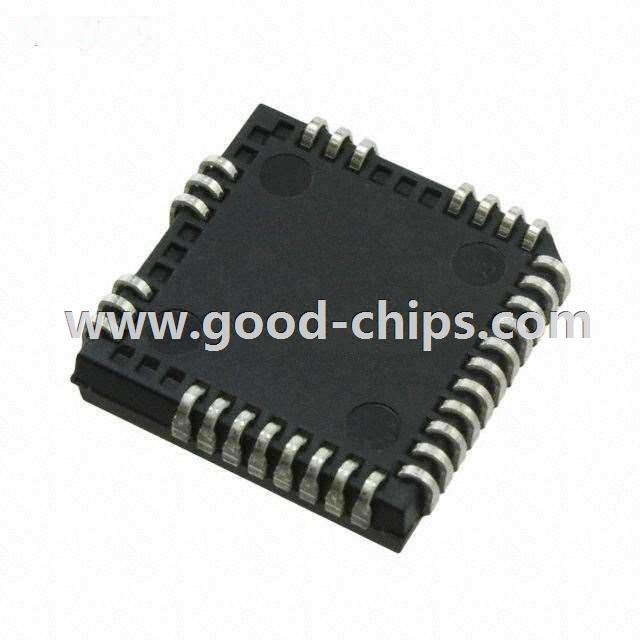

| Package / Case | 44-LCC (J-Lead), 32 Leads | |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR2131JTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR2131JTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR2131JTRPBF is new and unused, you can buy IR2131JTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR2131JTRPBF.
