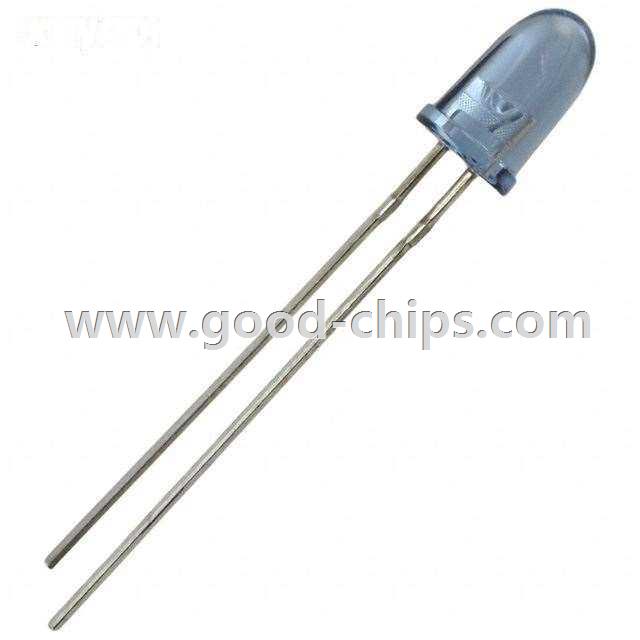

| Manufacturer Part Number: | IR1503 |
|---|---|
| Manufacturer: | Everlight Electronics Co Ltd |
| Product Category: | Infrared, UV, Visible Emitters |
| Available Quantity: | 11752 Pieces |
| Unit Price: | Quote by Email |
| Description: | Infrared (IR) Emitter 940nm 1.2V 100mA 21mW/sr @ 20mA 20° Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR1503 Datasheet |
| Internal Part Number | 898-IR1503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 5mm Infrared LED Emitters | |
| Category | Optoelectronics | |
| Family | Infrared, UV, Visible Emitters | |
| Manufacturer | Everlight Electronics Co Ltd | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Infrared (IR) | |
| Current - DC Forward (If) (Max) | 100mA | |
| Radiant Intensity (Ie) Min @ If | 21mW/sr @ 20mA | |
| Wavelength | 940nm | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Viewing Angle | 20° | |
| Orientation | Top View | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR1503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR1503 is in stock for immediate shipping now. We are the distributor of Everlight Electronics Co Ltd all series components. The condition of IR1503 is new and unused, you can buy IR1503 Everlight Electronics Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR1503.
