| Manufacturer Part Number: | IPU06N03LAGXK |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 25V 50A TO-251 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPU06N03LAGXK Datasheet |
| Internal Part Number | 898-IPU06N03LAGXK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 04/Jun/2009 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | OptiMOS™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) | |
| Rds On (Max) @ Id, Vgs | 5.9 mOhm @ 30A, 10V | |
| Vgs(th) (Max) @ Id | 2V @ 40µA | |
| Gate Charge (Qg) @ Vgs | 22nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 2653pF @ 15V | |
| Power - Max | 83W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

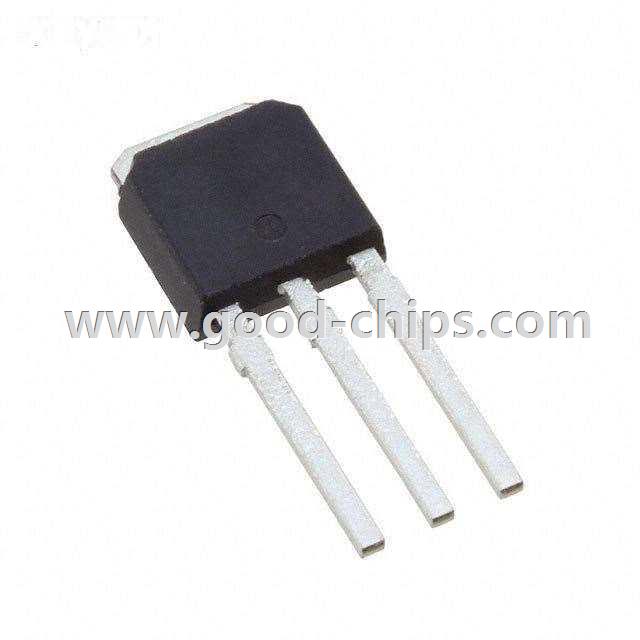

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | |
| Supplier Device Package | PG-TO251-3 | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPU06N03LAGXK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPU06N03LAGXK is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPU06N03LAGXK is new and unused, you can buy IPU06N03LAGXK Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPU06N03LAGXK.
