| Manufacturer Part Number: | IPS040N03L G |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9059 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 90A TO251-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPS040N03L G Datasheet |
| Internal Part Number | 898-IPS040N03L G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 19/Mar/2010 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | OptiMOS™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 90A (Tc) | |
| Rds On (Max) @ Id, Vgs | 4 mOhm @ 30A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 38nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3900pF @ 15V | |
| Power - Max | 79W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

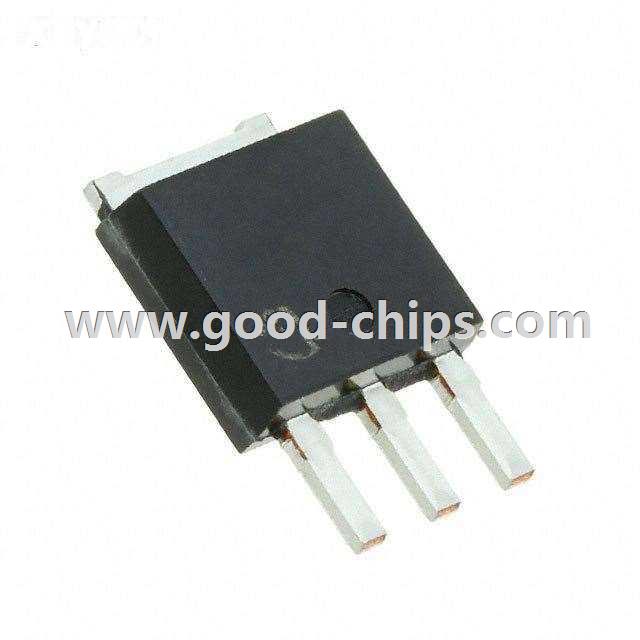

| Package / Case | TO-251-3 Stub Leads, IPak | |
| Supplier Device Package | PG-TO251-3 | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPS040N03L G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPS040N03L G is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPS040N03L G is new and unused, you can buy IPS040N03L G Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPS040N03L G.
