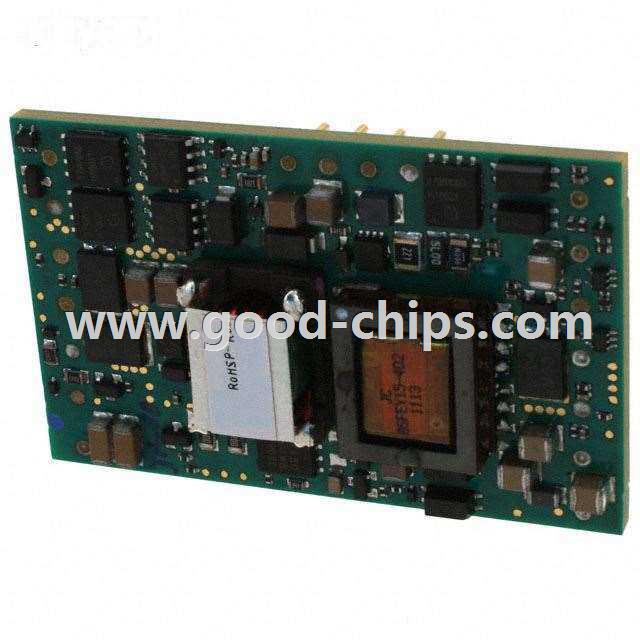

| Manufacturer Part Number: | IPM300 |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | POWER SUPPLY DC/DC 300W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPM300 Datasheet |
| Internal Part Number | 898-IPM300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | IPM300 300 W DC-DC Power Supply | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | IPM300 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | 5V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 3.6A, 150mA | |
| Power (Watts) - Manufacture Series | 12.6W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | OVP, SCP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 18-DIP Module | |
| Size / Dimension | 2.30" L x 1.45" W x 0.58" H (58.4mm x 36.8mm x 14.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 98% | |
| Power (Watts) - Max | 12.6W | |
| Standard Package | 64 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPM300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPM300 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of IPM300 is new and unused, you can buy IPM300 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPM300.
