IPL1-102-02-L-DH-K

IPL1-102-02-L-DH-K
Manufacturer Part Number:IPL1-102-02-L-DH-K
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

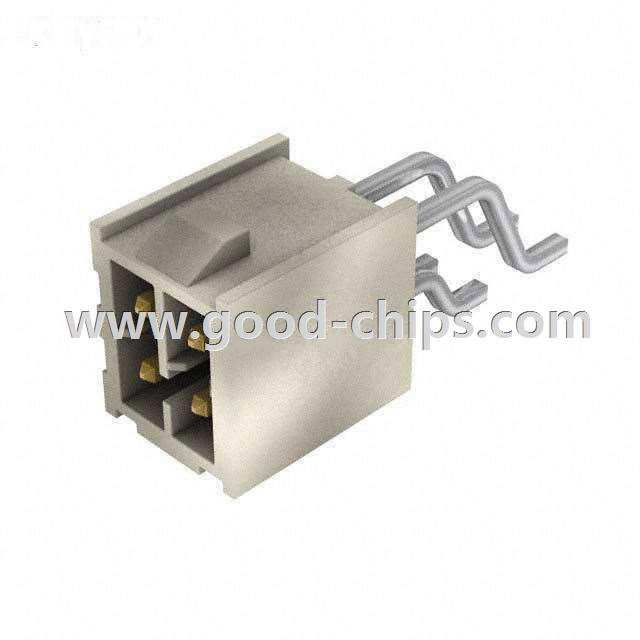

Description:4 Positions Header, Shrouded Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: IPL1-102-02-L-DH-K Datasheet
IPL1-102-02-L-DH-K´s Parameters
Internal Part Number898-IPL1-102-02-L-DH-K
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSamtec Inc.
SeriesMini Mate® IPL1
PackagingTube
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions4
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.215" (5.46mm)
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening TypeLocking Ramp
Features-
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
ColorNatural
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartIPL1-102-02-L-DH-K
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

IPL1-102-02-L-DH-K is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of IPL1-102-02-L-DH-K is new and unused, you can buy IPL1-102-02-L-DH-K Samtec Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for IPL1-102-02-L-DH-K.
