Manufacturer Part Number: | IPD1-15-D |
---|---|
Manufacturer: | Samtec Inc. |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 10845 Pieces |
Unit Price: | Quote by Email |

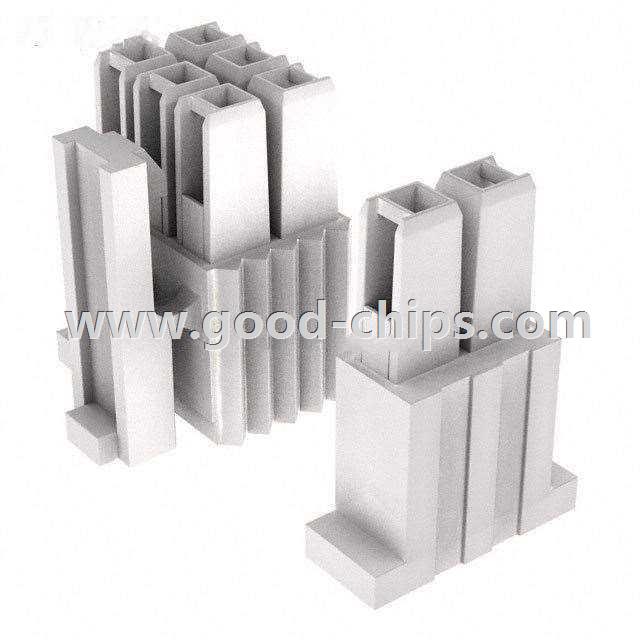

Description: | 30 Position Rectangular Housing Connector Receptacle White 0.100" (2.54mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IPD1-15-D Datasheet |
Internal Part Number | 898-IPD1-15-D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | IPD1/MMSD Form 20/Aug/2013 | |
Online Catalog | Mini Mate® IPD1 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Samtec Inc. | |
Series | Mini Mate® IPD1 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 30 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | White | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IPD1-15-D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IPD1-15-D is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of IPD1-15-D is new and unused, you can buy IPD1-15-D Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPD1-15-D.
