| Manufacturer Part Number: | IPA086N10N3 G |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 15174 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 100V 45A TO220-FP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPA086N10N3 G Datasheet |
| Internal Part Number | 898-IPA086N10N3 G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Fab/Test Site Transfer 28/May/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | OptiMOS™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) | |
| Rds On (Max) @ Id, Vgs | 8.6 mOhm @ 45A, 10V | |
| Vgs(th) (Max) @ Id | 3.5V @ 75µA | |
| Gate Charge (Qg) @ Vgs | 55nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3980pF @ 50V | |
| Power - Max | 37.5W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

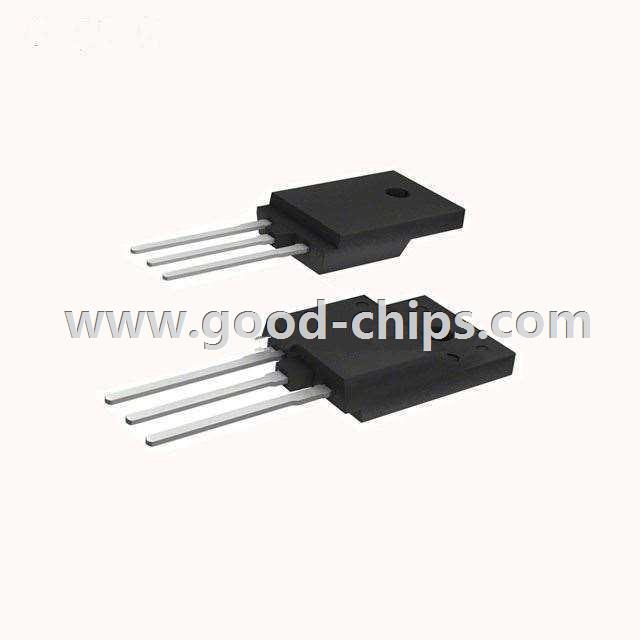

| Package / Case | TO-220-3 Full Pack | |
| Supplier Device Package | PG-TO220-FP | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPA086N10N3 G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPA086N10N3 G is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPA086N10N3 G is new and unused, you can buy IPA086N10N3 G Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPA086N10N3 G.
