| Manufacturer Part Number: | IP4285CZ9-TBB,115 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5.5VWM 3.9VC 9XSON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IP4285CZ9-TBB,115 Datasheet |
| Internal Part Number | 898-IP4285CZ9-TBB,115 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5.5V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 3.9V (Typ) | |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | HDMI | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

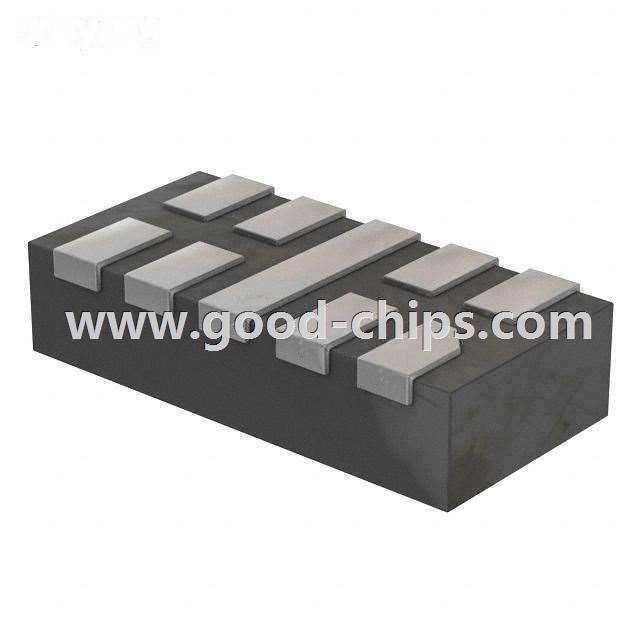

| Package / Case | 9-XFDFN | |
| Supplier Device Package | 9-XSON (2.1x1) DFN2110-9 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IP4285CZ9-TBB,115 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IP4285CZ9-TBB,115 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of IP4285CZ9-TBB,115 is new and unused, you can buy IP4285CZ9-TBB,115 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP4285CZ9-TBB,115.
