| Manufacturer Part Number: | IP4254CZ16-8,118 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 30pF (Total) 16-XFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IP4254CZ16-8,118 Datasheet |
| Internal Part Number | 898-IP4254CZ16-8,118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Portable devices & mobile handsets Appl Guide | |
| Featured Product | IP4253CZ8/CZ12/CZ16 & IP4254CZ8/CZ12/CZ16 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 8 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | 28dB @ 800MHz ~ 3GHz | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 30pF (Total) | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | LAN, WAN | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

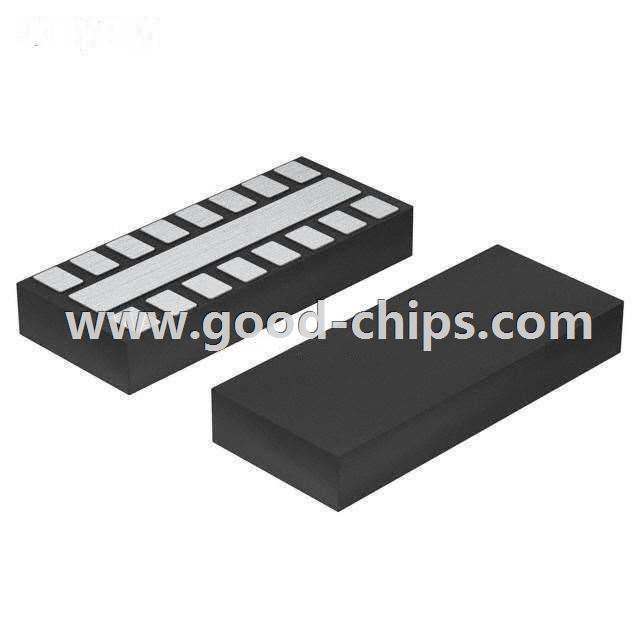

| Package / Case | 16-XFDFN Exposed Pad | |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) | |
| Height | 0.020" (0.50mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IP4254CZ16-8,118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IP4254CZ16-8,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of IP4254CZ16-8,118 is new and unused, you can buy IP4254CZ16-8,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP4254CZ16-8,118.
