Manufacturer Part Number: | IP4065CX11/P,135 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 33 Ohms, C = 27pF 11-WFBGA, WLCSP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IP4065CX11/P,135 Datasheet |
Internal Part Number | 898-IP4065CX11/P,135 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 29/Dec/2014 | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | NXP Semiconductors | |
Series | - | |
Packaging | Digi-Reel® | |
Part Status | Obsolete | |
Type | Low Pass | |
Filter Order | 2nd | |
Technology | RC (Pi) | |
Number of Channels | 2 | |
Center / Cutoff Frequency | - | |
Attenuation Value | - | |
Resistance - Channel (Ohms) | 33, 1.3k, 17k, 15k | |
Current | - | |
Values | R = 33 Ohms, C = 27pF | |
ESD Protection | Yes | |
Operating Temperature | -30°C ~ 85°C | |
Applications | USB | |
Voltage - Rated | - | |
Mounting Type | Surface Mount | |

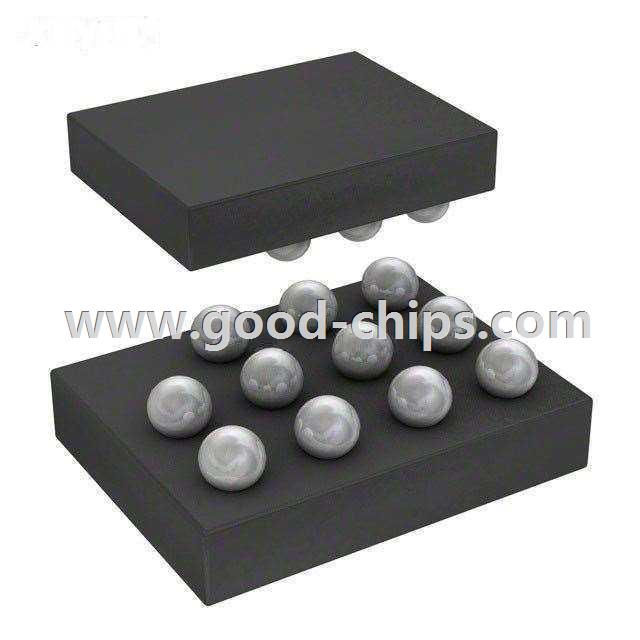

Package / Case | 11-WFBGA, WLCSP | |
Size / Dimension | 0.077" L x 0.058" W (1.97mm x 1.47mm) | |
Height | 0.026" (0.65mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IP4065CX11/P,135 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IP4065CX11/P,135 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of IP4065CX11/P,135 is new and unused, you can buy IP4065CX11/P,135 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP4065CX11/P,135.
