Manufacturer Part Number: | IP4041CX25/LF/P,13 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 200 Ohms (Total), C = 50pF (Total) 25-WLCSP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IP4041CX25/LF/P,13 Datasheet |
Internal Part Number | 898-IP4041CX25/LF/P,13 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | EOL 30/Dec/2015 | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | NXP Semiconductors | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Low Pass | |
Filter Order | 2nd | |
Technology | RC (Pi) | |
Number of Channels | 10 | |
Center / Cutoff Frequency | - | |
Attenuation Value | 30dB @ 800MHz ~ 2.4GHz | |
Resistance - Channel (Ohms) | 200 | |
Current | - | |
Values | R = 200 Ohms (Total), C = 50pF (Total) | |
ESD Protection | Yes | |
Operating Temperature | -35°C ~ 85°C | |
Applications | GSM, LAN, PCS, WAN | |
Voltage - Rated | - | |
Mounting Type | Surface Mount | |

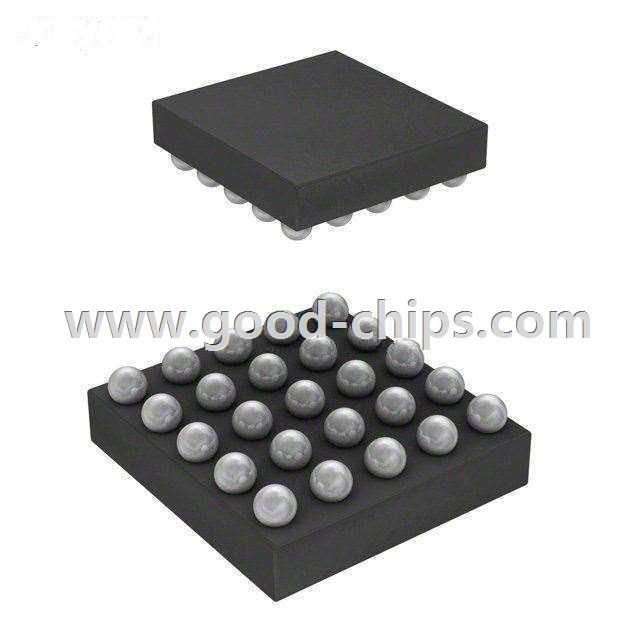

Package / Case | 25-WLCSP | |
Size / Dimension | 0.095" L x 0.095" W (2.41mm x 2.41mm) | |
Height | 0.028" (0.70mm) | |
Standard Package | 4,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IP4041CX25/LF/P,13 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IP4041CX25/LF/P,13 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of IP4041CX25/LF/P,13 is new and unused, you can buy IP4041CX25/LF/P,13 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP4041CX25/LF/P,13.
