| Manufacturer Part Number: | INA213AIDCKT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 20260 Pieces |
| Unit Price: | Quote by Email |
| Description: | Current Sense Amplifier 1 Circuit SC-70-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | INA213AIDCKT Datasheet |
| Internal Part Number | 898-INA213AIDCKT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Current Shunt Monitors | |
| PCN Design/Specification | ESD Rating Charge Update 25/Jul/2014 | |
| PCN Packaging | Multiple Devices 29/Sep/2015 Retraction 15/Mar/2016 | |
| Manufacturer Product Page | INA213AIDCKT Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Current Sense | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Amplifier Type | Current Sense | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 0.4 V/µs | |
| Gain Bandwidth Product | 80kHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 28µA | |
| Voltage - Input Offset | 5µV | |
| Current - Supply | 65µA | |
| Current - Output / Channel | - | |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 26 V | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

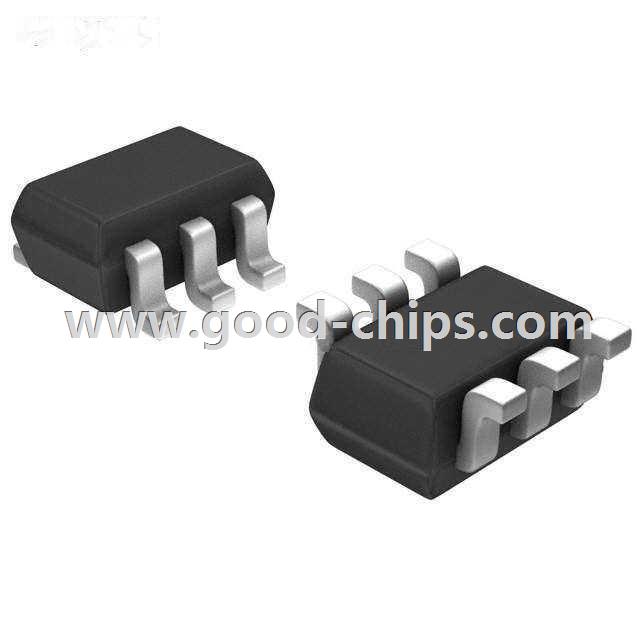

| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Supplier Device Package | SC-70-6 | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | INA213AIDCKT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
INA213AIDCKT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of INA213AIDCKT is new and unused, you can buy INA213AIDCKT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for INA213AIDCKT.
