Manufacturer Part Number: | INA2126EA/250G4 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Instrumentation Amplifier 2 Circuit 16-SSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | INA2126EA/250G4 Datasheet |
Internal Part Number | 898-INA2126EA/250G4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Amplifier Type | Instrumentation | |
Number of Circuits | 2 | |
Output Type | - | |
Slew Rate | 0.4 V/µs | |
Gain Bandwidth Product | - | |
-3db Bandwidth | 200kHz | |
Current - Input Bias | 10nA | |
Voltage - Input Offset | 150µV | |
Current - Supply | 175µA | |
Current - Output / Channel | 10mA | |
Voltage - Supply, Single/Dual (±) | 2.7 V ~ 36 V, ±1.35 V ~ 18 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

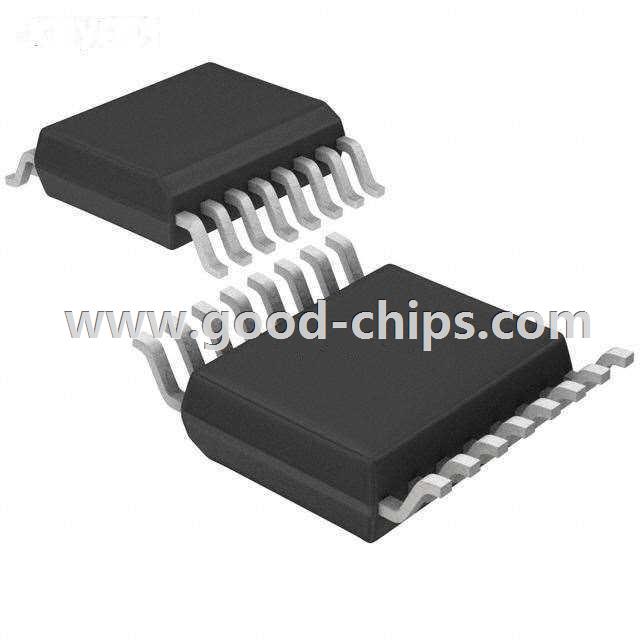

Package / Case | 16-SSOP (0.154", 3.90mm Width) | |
Supplier Device Package | 16-SSOP | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | INA2126EA/250G4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
INA2126EA/250G4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of INA2126EA/250G4 is new and unused, you can buy INA2126EA/250G4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for INA2126EA/250G4.
