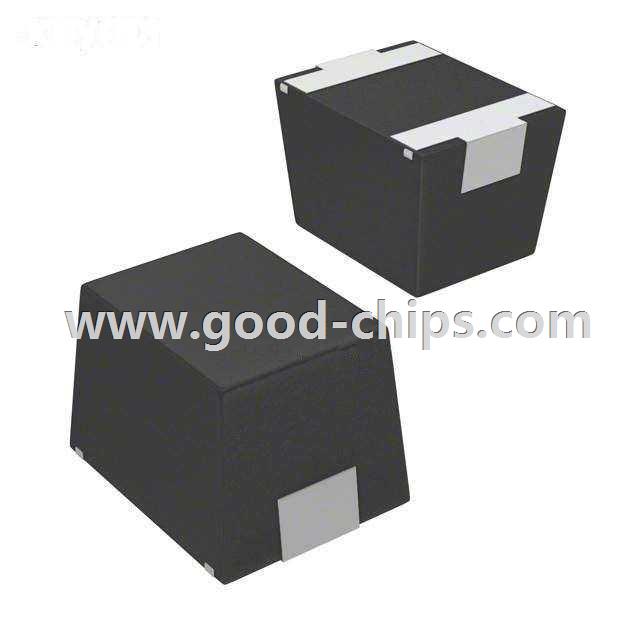

| Manufacturer Part Number: | IMC1210BNR47J |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 470nH Unshielded Wirewound Inductor 450mA 500 mOhm Max 1210 (3225 Metric) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IMC1210BNR47J Datasheet |
| Internal Part Number | 898-IMC1210BNR47J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Vishay Dale | |
| Series | IMC-1210 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Powdered Iron | |
| Inductance | 470nH | |
| Tolerance | ±5% | |
| Current Rating | 450mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 500 mOhm Max | |
| Q @ Freq | 30 @ 25.2MHz | |
| Frequency - Self Resonant | 220MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 25.2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) | |
| Height - Seated (Max) | 0.095" (2.41mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IMC1210BNR47J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IMC1210BNR47J is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IMC1210BNR47J is new and unused, you can buy IMC1210BNR47J Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IMC1210BNR47J.
