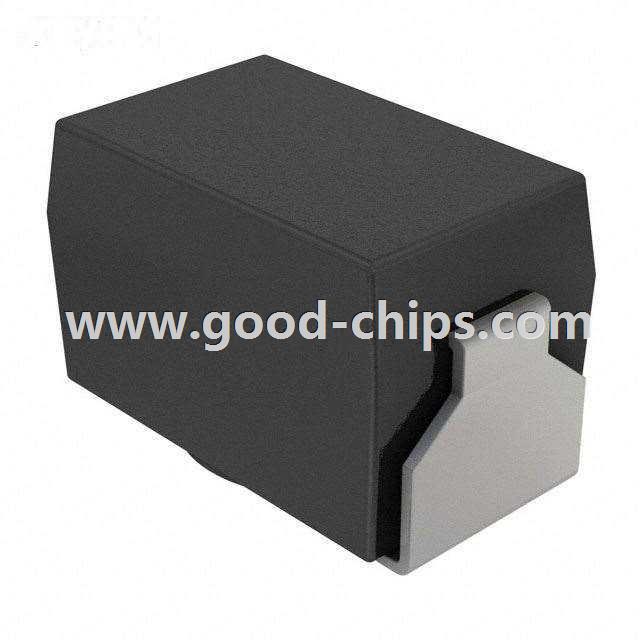

-Non-Magnetic-Inductor.jpg)
| Manufacturer Part Number: | IMC0805ERR39K |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 390nH Unshielded Wirewound Inductor 150mA 1.82 Ohm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IMC0805ERR39K Datasheet |
| Internal Part Number | 898-IMC0805ERR39K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Vishay Dale | |
| Series | IMC-0805 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | Non-Magnetic | |
| Inductance | 390nH | |
| Tolerance | ±10% | |
| Current Rating | 150mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.82 Ohm Max | |
| Q @ Freq | 10 @ 25.2MHz | |
| Frequency - Self Resonant | 150MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 25.2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.050" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.061" (1.55mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IMC0805ERR39K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IMC0805ERR39K is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IMC0805ERR39K is new and unused, you can buy IMC0805ERR39K Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IMC0805ERR39K.
