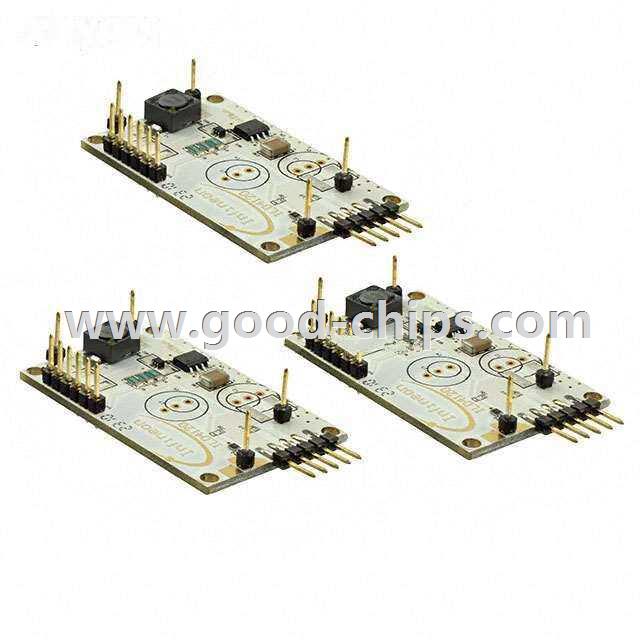

| Manufacturer Part Number: | ILD4120 BOARD |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | ILD4120 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ILD4120 BOARD Datasheet |
| Internal Part Number | 898-ILD4120 BOARD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Part Status | Obsolete | |
| Current - Output / Channel | 600mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | - | |
| Features | Dimmable | |
| Voltage - Input | 4.5 V ~ 30 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | ILD4120 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ILD4120 BOARD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ILD4120 BOARD is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of ILD4120 BOARD is new and unused, you can buy ILD4120 BOARD Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ILD4120 BOARD.
