| Manufacturer Part Number: | IL766B-2 |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9950 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Darlington Output 5300Vrms 1 Channel 6-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IL766B-2 Datasheet |
| Internal Part Number | 898-IL766B-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IL766B Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5300Vrms | |
| Current Transfer Ratio (Min) | 900% @ 500µA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | 200µs, - | |
| Rise / Fall Time (Typ) | - | |
| Input Type | AC, DC | |
| Output Type | Darlington | |
| Voltage - Output (Max) | 60V | |
| Current - Output / Channel | - | |
| Voltage - Forward (Vf) (Typ) | 1.25V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 1V | |
| Operating Temperature | -55°C ~ 100°C | |
| Mounting Type | Through Hole | |

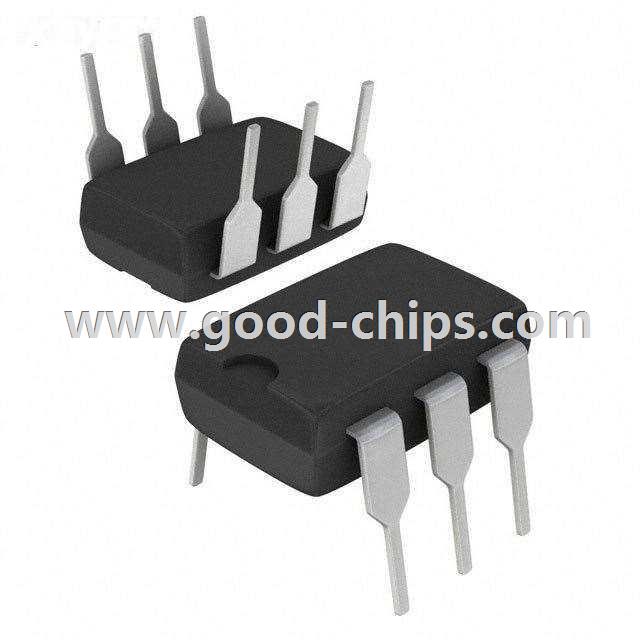

| Package / Case | 6-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IL766B-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IL766B-2 is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of IL766B-2 is new and unused, you can buy IL766B-2 Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL766B-2.
