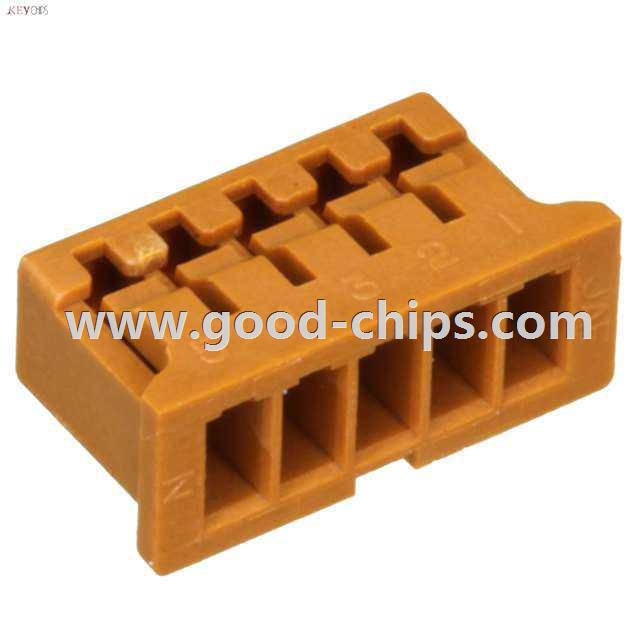

| Manufacturer Part Number: | IL-Z-5S-S125C3 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5 Position Rectangular Housing Connector Receptacle 0.049" (1.25mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IL-Z-5S-S125C3 Datasheet |
| Internal Part Number | 898-IL-Z-5S-S125C3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IL-STD,G,Y,Z Series 01/Nov/2013 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | JAE Electronics | |
| Series | IL-Z | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 5 | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | - | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IL-Z-5S-S125C3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IL-Z-5S-S125C3 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of IL-Z-5S-S125C3 is new and unused, you can buy IL-Z-5S-S125C3 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL-Z-5S-S125C3.
