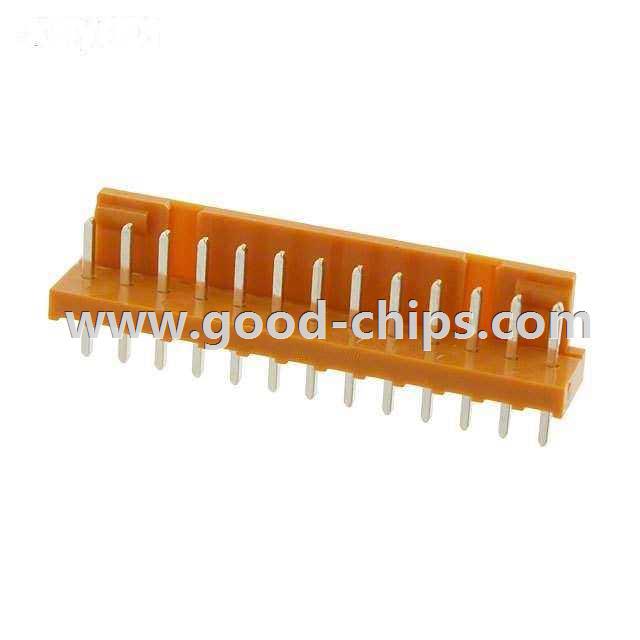

| Manufacturer Part Number: | IL-G-13P-S3T2-SA |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 13848 Pieces |
| Unit Price: | Quote by Email |
| Description: | 13 Positions Header, Unshrouded Connector 0.098" (2.50mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IL-G-13P-S3T2-SA Datasheet |
| Internal Part Number | 898-IL-G-13P-S3T2-SA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IL-STD,G,Y,Z Series 01/Nov/2013 IL/IL-G Series PCN Reversal 20/Nov/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | JAE Electronics | |
| Series | IL-G | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 13 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.157" (4.00mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Brown | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IL-G-13P-S3T2-SA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IL-G-13P-S3T2-SA is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of IL-G-13P-S3T2-SA is new and unused, you can buy IL-G-13P-S3T2-SA JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL-G-13P-S3T2-SA.
