| Manufacturer Part Number: | IL-AG5-16P-D3C1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9242 Pieces |
| Unit Price: | Quote by Email |

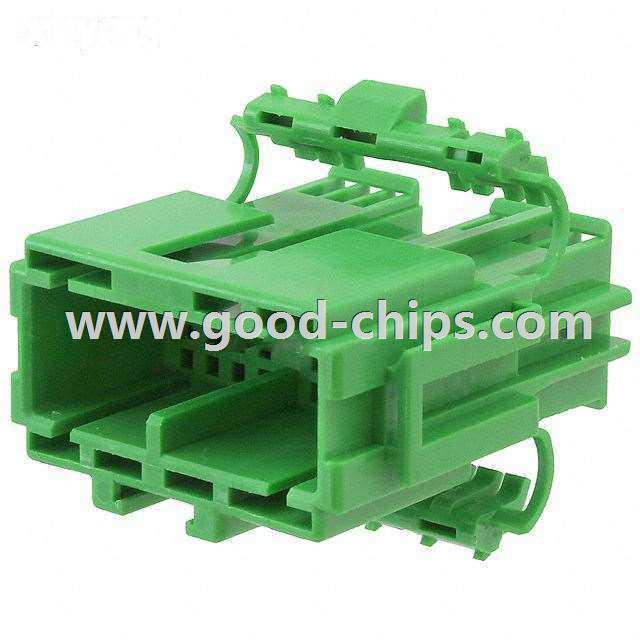

| Description: | 16 Position Rectangular Housing Connector Plug Green 0.098" (2.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IL-AG5-16P-D3C1 Datasheet |
| Internal Part Number | 898-IL-AG5-16P-D3C1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IL-AG5 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | JAE Electronics | |
| Series | IL-AG5 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Male Pin | |
| Number of Positions | 16 | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.118" (3.00mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | Green | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IL-AG5-16P-D3C1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IL-AG5-16P-D3C1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of IL-AG5-16P-D3C1 is new and unused, you can buy IL-AG5-16P-D3C1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL-AG5-16P-D3C1.
