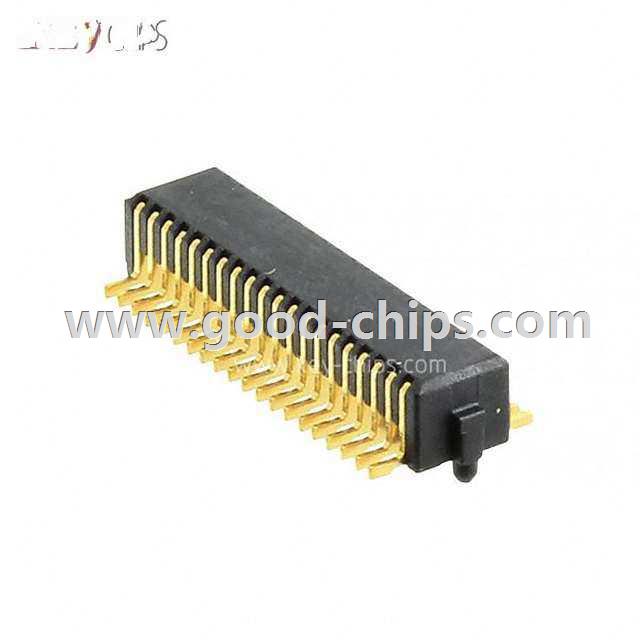

| Manufacturer Part Number: | IL-312-40PB-VF30-A1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 40 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IL-312-40PB-VF30-A1 Datasheet |
| Internal Part Number | 898-IL-312-40PB-VF30-A1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple devices Apr/2013 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | IL-312 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 40 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 3mm, 3.5mm | |
| Height Above Board | 0.081" (2.05mm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IL-312-40PB-VF30-A1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IL-312-40PB-VF30-A1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of IL-312-40PB-VF30-A1 is new and unused, you can buy IL-312-40PB-VF30-A1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL-312-40PB-VF30-A1.
