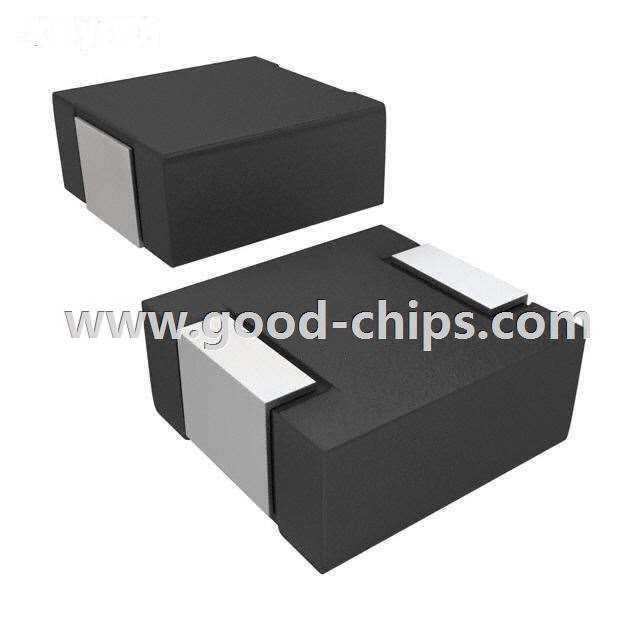

| Manufacturer Part Number: | IHLP2525BDERR82M01 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 820nH Shielded Molded Inductor 10A 11.8 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IHLP2525BDERR82M01 Datasheet |
| Internal Part Number | 898-IHLP2525BDERR82M01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IHLP Inductor Series | |
| Video File | IHLP® Power Inductor Saturation Current Performance Test | |
| Featured Product | IHLP® Surface-Mount Power Inductors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Vishay Dale | |
| Series | IHLP-2525BD-01 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | - | |
| Inductance | 820nH | |
| Tolerance | ±20% | |
| Current Rating | 10A | |
| Current - Saturation | 17A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 11.8 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | |
| Height - Seated (Max) | 0.094" (2.40mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IHLP2525BDERR82M01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IHLP2525BDERR82M01 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IHLP2525BDERR82M01 is new and unused, you can buy IHLP2525BDERR82M01 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IHLP2525BDERR82M01.
