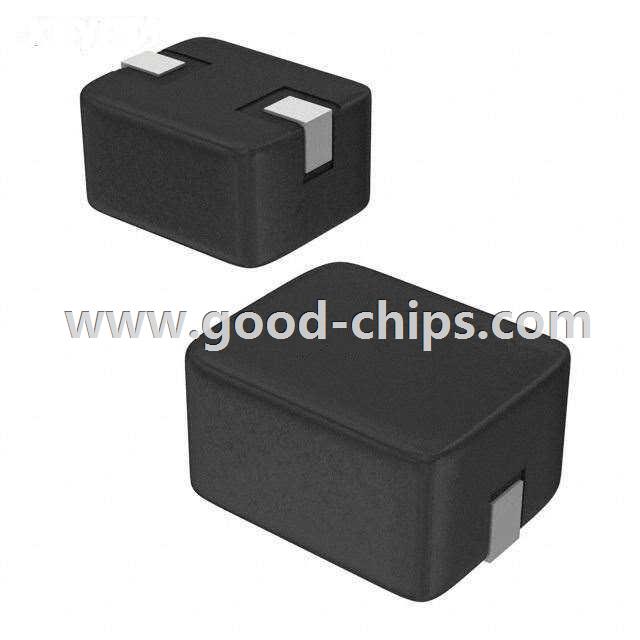

| Manufacturer Part Number: | IHLP1212BZER3R3M11 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3µH Shielded Molded Inductor 2.7A 61 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IHLP1212BZER3R3M11 Datasheet |
| Internal Part Number | 898-IHLP1212BZER3R3M11 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IHLP Inductor Series | |
| Video File | IHLP® Power Inductor Saturation Current Performance Test | |
| Featured Product | IHLP® Low-Profile, High-Current Inductors | |
| PCN Design/Specification | DI-197-2014 Rev 0 14/May/2014 | |
| Online Catalog | IHLP® Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Vishay Dale | |
| Series | IHLP-1212BZ-11 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | - | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 2.7A | |
| Current - Saturation | 3.3A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 61 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 45MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.144" L x 0.118" W (3.65mm x 3.00mm) | |
| Height - Seated (Max) | 0.079" (2.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IHLP1212BZER3R3M11 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IHLP1212BZER3R3M11 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IHLP1212BZER3R3M11 is new and unused, you can buy IHLP1212BZER3R3M11 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IHLP1212BZER3R3M11.
