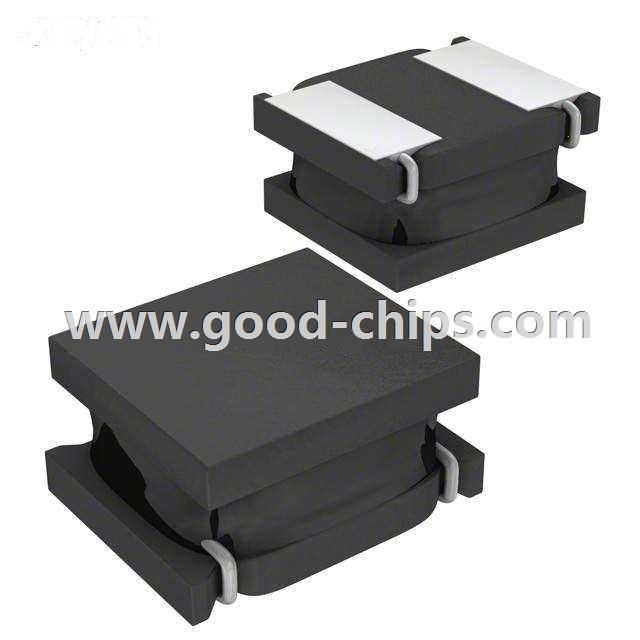

Manufacturer Part Number: | IFSC0806AZER100M01 |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Inductor 450mA 1.33 Ohm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IFSC0806AZER100M01 Datasheet |
Internal Part Number | 898-IFSC0806AZER100M01 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | IFSC-0806AZ Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Vishay Dale | |
Series | IFSC-0806AZ-01 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | - | |
Inductance | 10µH | |
Tolerance | ±20% | |
Current Rating | 450mA | |
Current - Saturation | 620mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 1.33 Ohm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
Height - Seated (Max) | 0.039" (1.00mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IFSC0806AZER100M01 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IFSC0806AZER100M01 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IFSC0806AZER100M01 is new and unused, you can buy IFSC0806AZER100M01 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IFSC0806AZER100M01.
